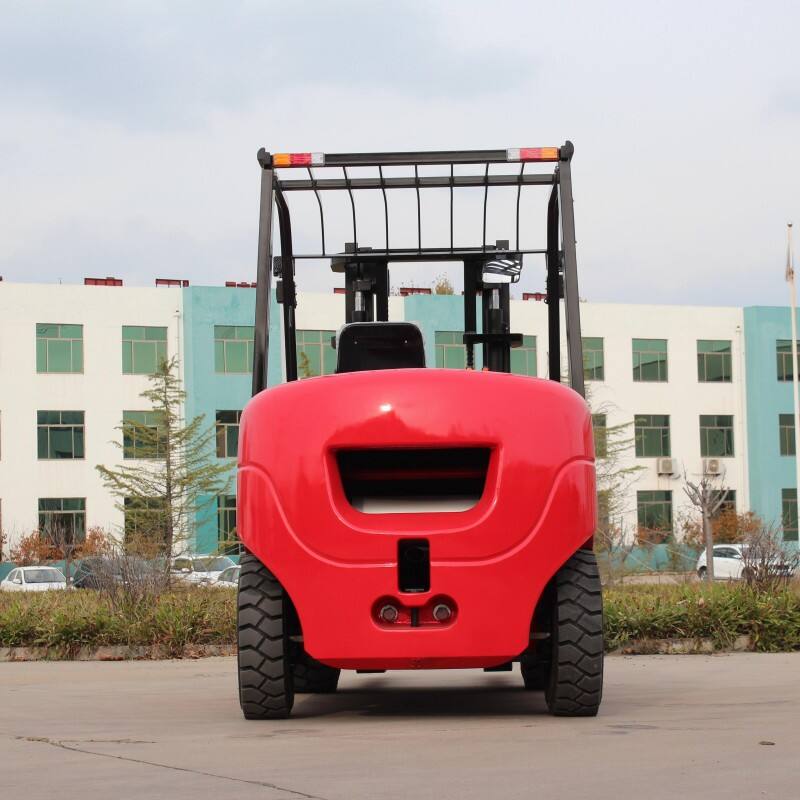

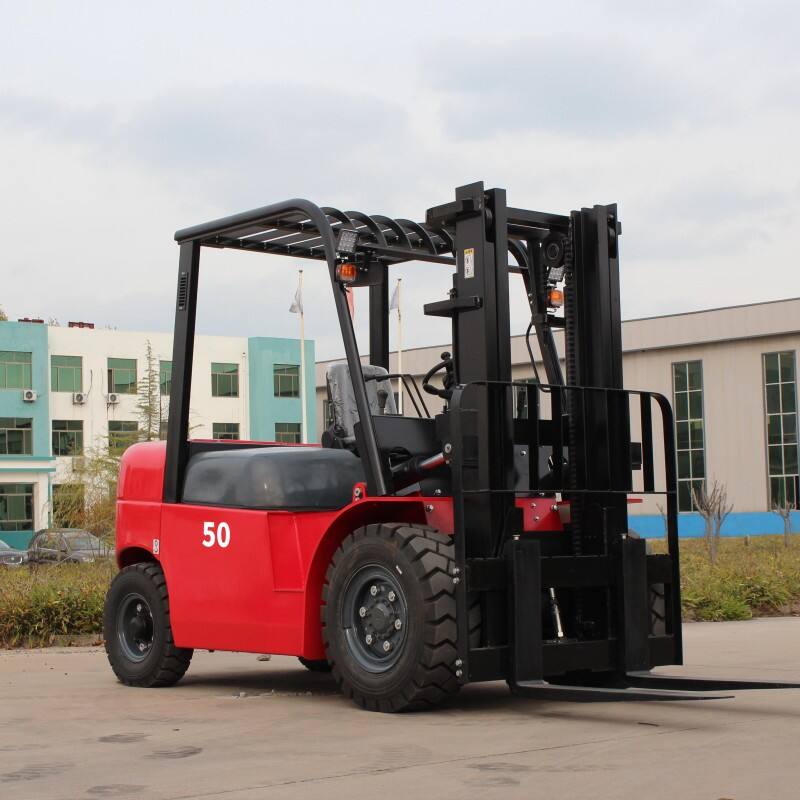

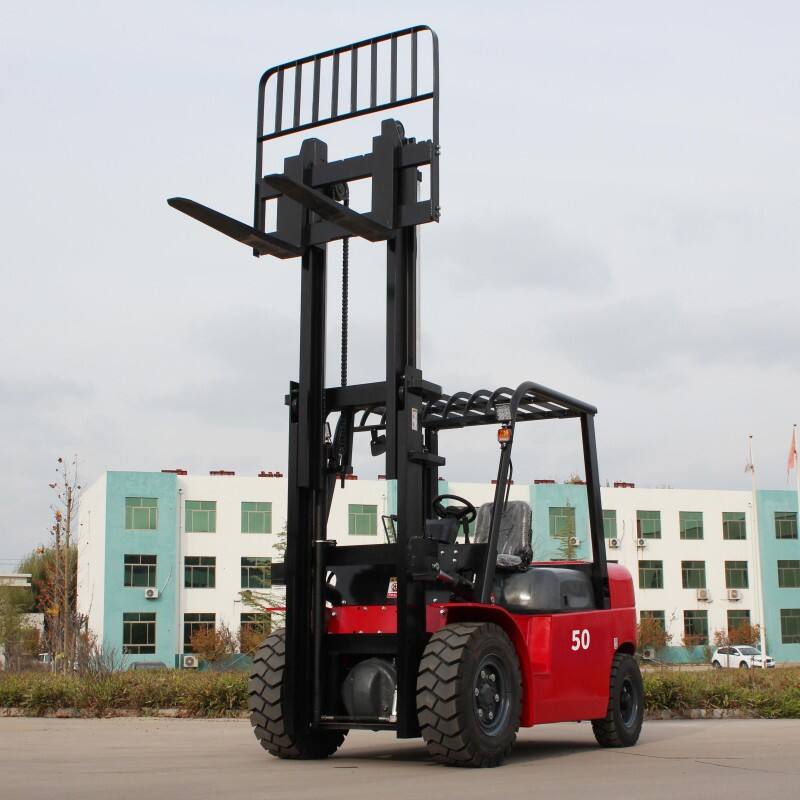

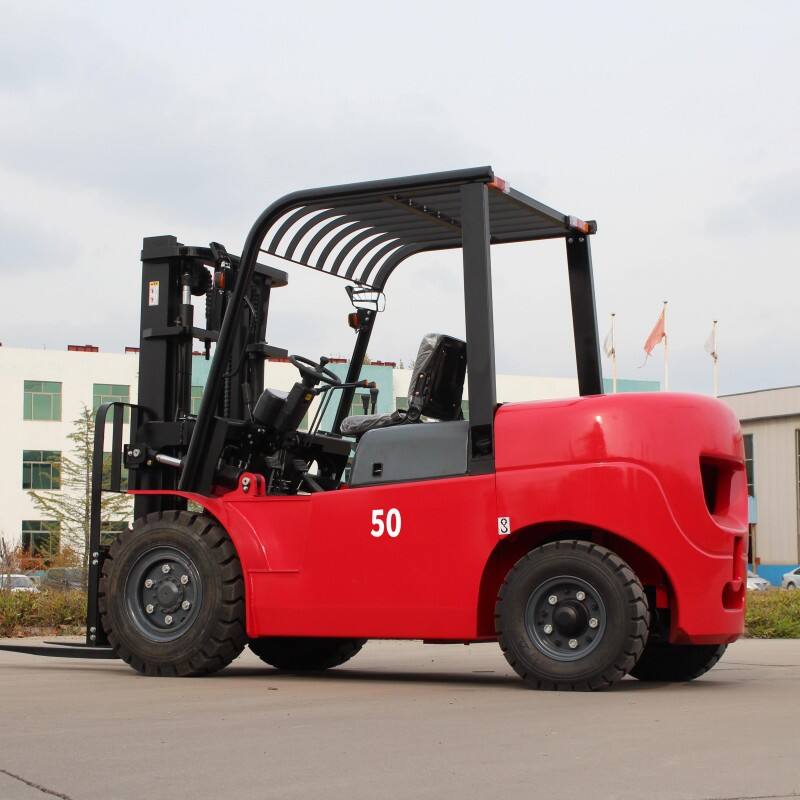

Colt New 5-ton Container Mast Diesel Forklift
We offer a full range of diesel forklifts from 1.5 tons to 32 tons, including standard counterbalanced, heavy-duty port, off-road, explosion-proof, and high-lift/mast customization types. The standard counterbalanced forklifts are flexible and efficient, suitable for daily loading and unloading in factories and short-distance transportation in warehouses. The heavy-duty port type is equipped with reinforced frames and cooling systems, capable of handling container stacking and continuous heavy-load operations.
- Overview
- Recommended Products
Description:
The off-road type is fitted with large-pattern tires and reinforced chassis, capable of easily navigating muddy and bumpy construction sites or mining roads. The explosion-proof type features spark suppression and exhaust cooling functions, specifically designed for use in flammable and explosive environments such as chemical plants and oil depots. Our products are widely used in heavy material handling within factories, bulk cargo loading and unloading in ports, steel bar and pipe transportation at construction sites, as well as in agriculture and cold chain logistics. Functionally, they can be equipped with powerful engines from brands like New Holland, Isuzu, and Yanmar, and offer flexible customization options for wheelbase, overhead guard, attachments, and mast height. They also meet international certifications such as CE and EPA, and are packaged with anti-rust marine protection to meet global export requirements.
Specifications:
| Basic Model | K30/H30T | ||
| Power type | Diesel oil | ||
| Rated capacity | kg | 3000 | |
| load Centre | mm | 500 | |
| Lift height | mm | 3000 | |
| Free lift height | mm | 140 | |
| Fork size | L×W×T | mm | 1070×122×45 |
| Mast tilt angle | F/R | Deg | 60/12。 |
| Front overhang | mm | 460 | |
| Rear overhang | mm | 550 | |
| Min.ground clearance(Bottom of mast) | mm | 135 | |
| Overall dimensions | Length to face of fork(without fork) | mm | 2750 |
| Overall width | mm | 1240 | |
| Mast lowered height | mm | 2070 | |
| Mast extended height(with backrest) | mm | 4065 | |
| Overhead guard height | mm | 2220 | |
| Turning radius(outside) | mm | 2600 | |
| Speed | Travel(Unladen) | km/h | 19 |
| Lifting(Laden) | mm/sec | 430 | |
| Lowering(Laden) | mm/sec | 450 | |
| Max.Drawbar pull(Laden/unladen) | KN | 18(15.7) | |
| Max.Gradeability(Laden) | % | 20 | |
| Tyre | Front | mm | 28×9-15-12PR |
| Rear | mm | 6.50-10-10PR | |
Applications:
The 5-ton diesel forklift is a powerful assistant for heavy-duty operations, widely used in ports, steel processing plants, large building material yards and heavy machinery assembly workshops. In the steel market, it can easily handle coiled wire rods, steel plates and H-beams; in ports, it can load and unload 20-foot heavy containers, large castings and mining equipment. With the powerful low torque of the diesel engine and the thickened frame, it can handle outdoor long slopes, muddy roads and high-temperature dusty environments with ease, achieving continuous operation throughout the day. For export requirements, we support the customization of attachments (such as rotators and push-pullers), and provide anti-rust marine packaging and CE certification to ensure stable and reliable global delivery.
Advantages：
1. Reliable and durable core components: Key components such as the transmission and drive axle are all self-made, combined with a high-strength mast and cast steering axle, ensuring a robust structure, low failure rate, and long service life.
2. High efficiency and energy saving: Equipped with high-quality engines and load-sensing hydraulic systems, it provides strong power while effectively reducing fuel consumption.
3. Comfortable operation: The suspended overhead guard and exhaust system are flexibly connected, significantly reducing the whole vehicle's vibration and noise; the suspended shock-absorbing seat, along with the car-like layout of the control handle, makes long-term operation less tiring.
4. Humanized safety: Standardized with lift buffers and explosion-proof safety valves, the goods descend smoothly; wide anti-slip pedals and an unobstructed front and rear view ensure driving safety.
5. Convenient maintenance: The engine hood can be opened at a large angle, and maintenance components such as filters are externally placed, making daily checks and maintenance easier.
6. Adaptability to all working conditions: Equipped with a high-performance cooling system, it supports continuous operation in harsh environments such as high temperatures and dust.
FAQ：
1. What is the maximum load capacity of a 3-ton diesel forklift?
Answer: The rated lifting capacity is 5000kg (i.e., 5 tons), measured under the standard load center distance (usually 500mm). During actual operation, do not overload and pay attention to the position of the center of gravity of the goods.
2. What are the main differences between diesel forklifts and electric forklifts?
One-sentence suggestion: For indoor use, light loads, and high environmental protection requirements → choose electric; for outdoor use, heavy loads, long operating hours, and harsh environments → choose diesel.
How to transport a 2-ton diesel forklift? What should be noted?
Answer: The transportation methods are usually whole vehicle road transportation or container sea export.
Export advantages: We can provide KD disassembled parts solutions to reduce tariffs in the destination country; packaging meets CE, EPA and other certification requirements.
3. Is a diesel forklift suitable for indoor use?
Not recommended. The exhaust gas from diesel engines contains harmful substances such as CO and NOx. Long-term use in closed or poorly ventilated indoor environments may be harmful to health. If it must be used indoors, please ensure the installation of exhaust gas purification devices (such as DPF) and maintain strong ventilation, or switch to an electric forklift.
4. Compared with Heli, what are the advantages of our 5-ton diesel forklift?
Answer: Our product is on par with Heli in terms of performance, reliability, and durability, and has the same excellent core configuration: self-made high-strength transmission and drive axle, load sensing hydraulic system, suspended shock-absorbing cab, lift buffer safety valve, etc. At the same time, we offer more flexible customization services (such as attachments, mast height, explosion-proof modification) and a faster delivery cycle (standard vehicles within 15 days), and support export certification and professional sea transportation packaging, with more competitive prices.
