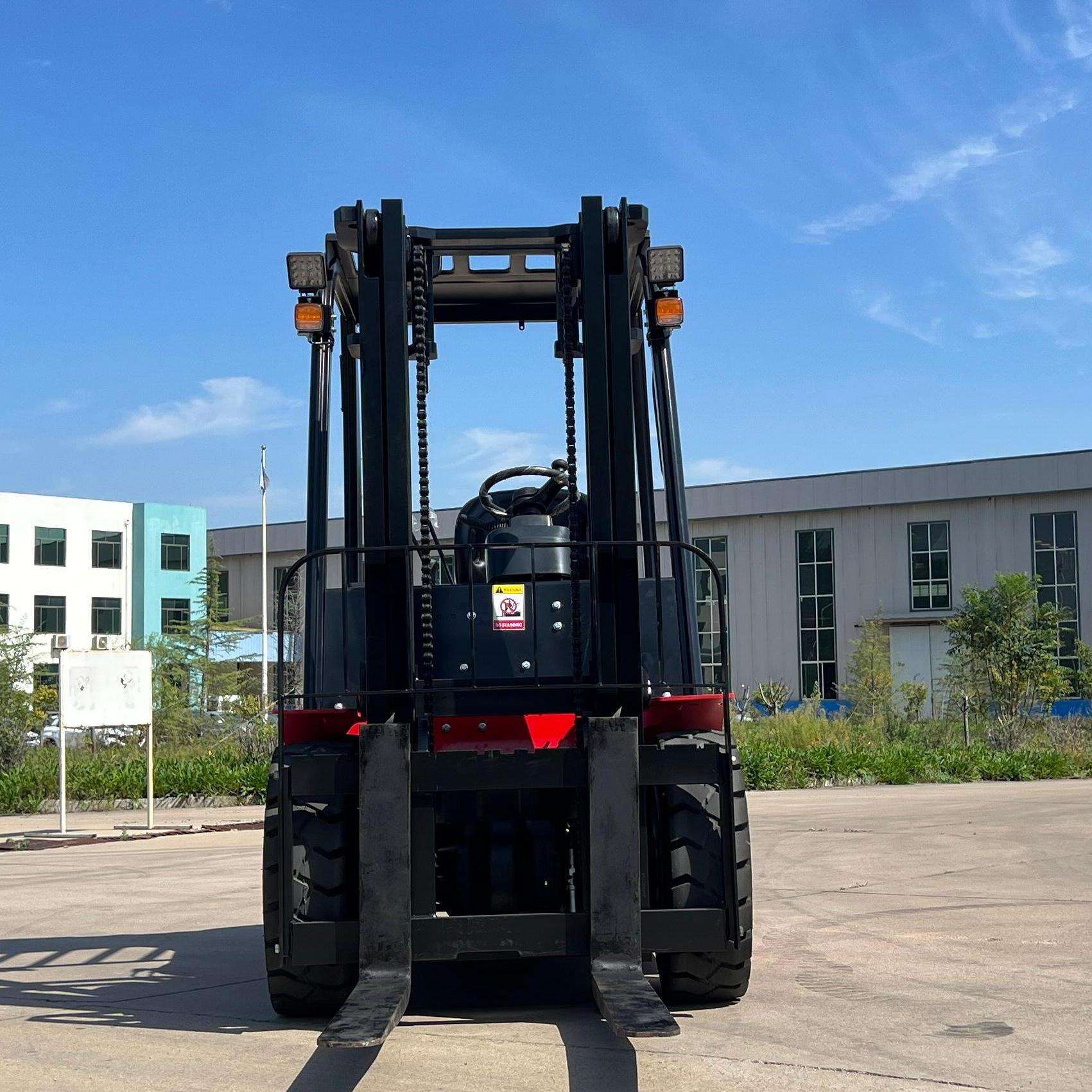

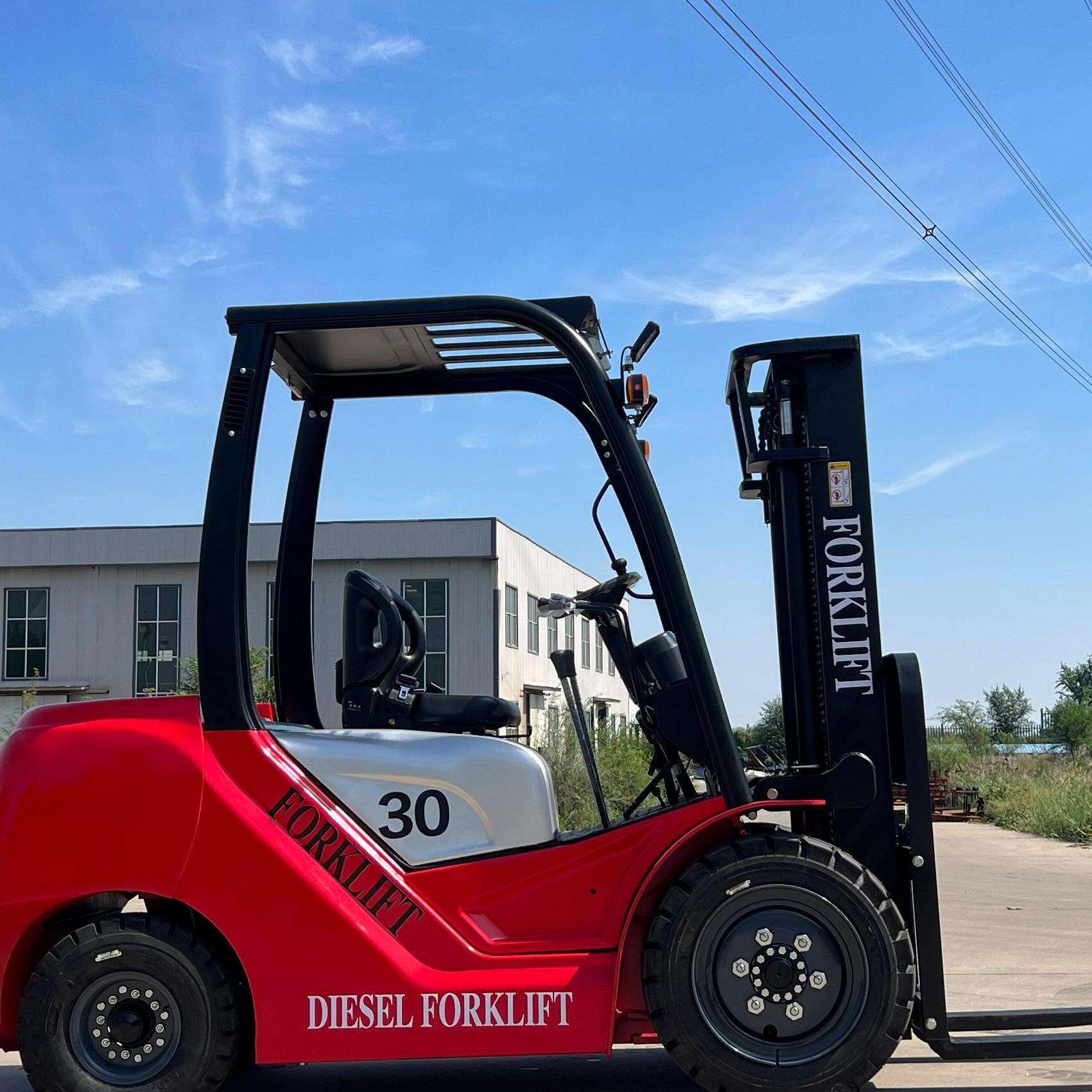

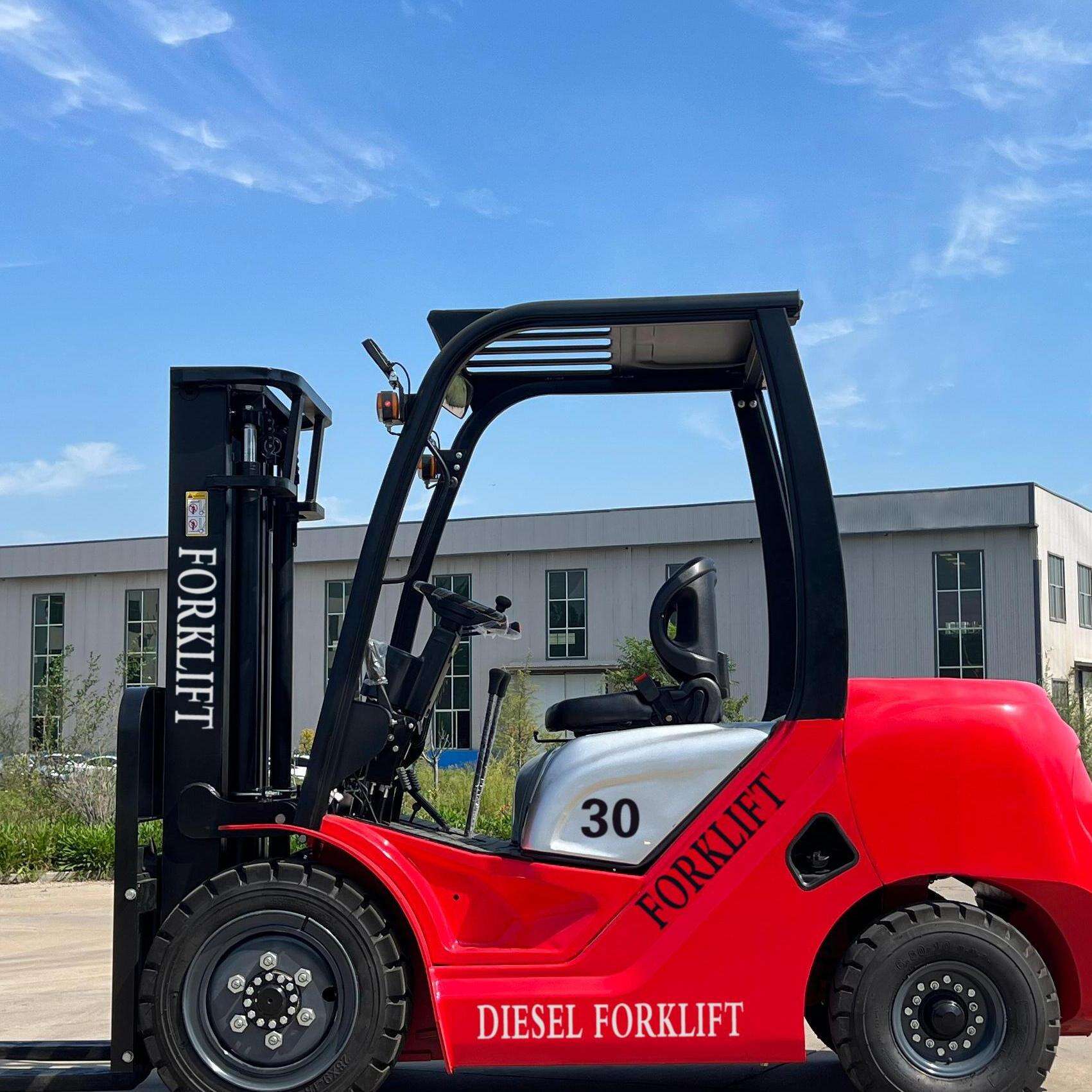

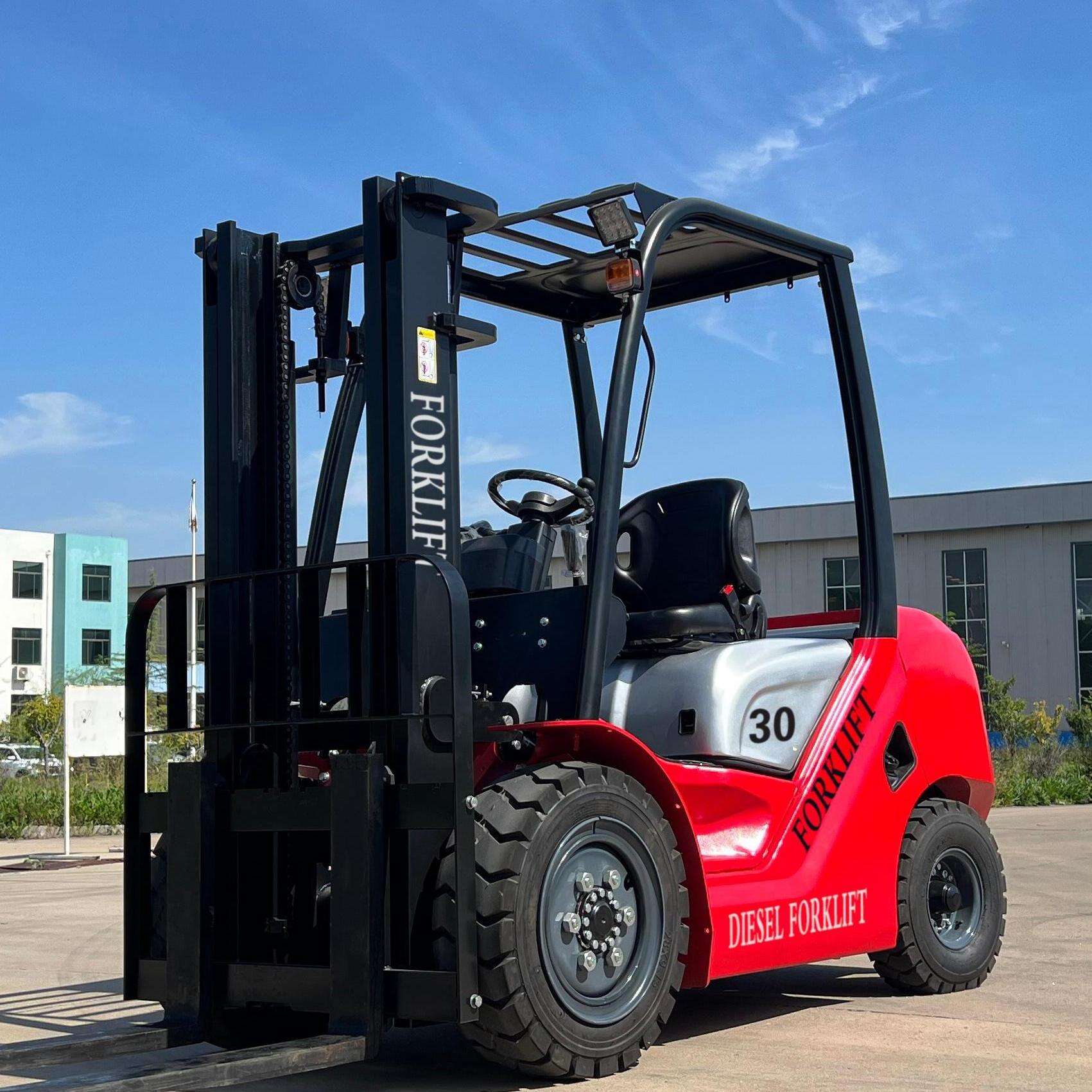

Colt 3-section container mast, working height 3-6m, 3-ton diesel forklift
We offer a full range of diesel forklifts from 1.5 tons to 32 tons, including standard counterbalanced, heavy-duty port, off-road, explosion-proof, and high-lift/customized attachments models. The standard counterbalanced forklifts are flexible and efficient, suitable for daily loading and unloading in factories and short-distance transportation in warehouses. The heavy-duty port models feature reinforced frames and cooling systems, capable of handling container stacking and continuous heavy-duty operations.
- Overview
- Recommended Products
Description:
The off-road models are equipped with large-pattern tires and reinforced chassis, making them ideal for muddy and bumpy construction sites or mines. The explosion-proof models have spark suppression and exhaust cooling functions, specifically designed for use in flammable and explosive environments such as chemical plants and oil depots. Our products are widely used in heavy material handling within factories, bulk cargo loading and unloading in ports, steel bar and pipe transportation on construction sites, as well as in agriculture and cold chain logistics. Functionally, they can be equipped with powerful engines from brands like New Holland, Isuzu, and Yanmar, and offer flexible customization options for wheelbase, overhead guard, attachments, and mast height. They also meet international certifications such as CE and EPA, and are packaged with anti-rust marine shipping materials to meet global export requirements.
Specifications:
| Basic Model | K30/H30T | ||
| Power type | Diesel oil | ||
| Rated capacity | kg | 3000 | |
| load Centre | mm | 500 | |
| Lift height | mm | 3000 | |
| Free lift height | mm | 140 | |
| Fork size | L×W×T | mm | 1070×122×45 |
| Mast tilt angle | F/R | Deg | 60/12。 |
| Front overhang | mm | 460 | |
| Rear overhang | mm | 550 | |
| Min.ground clearance(Bottom of mast) | mm | 135 | |
| Overall dimensions | Length to face of fork(without fork) | mm | 2750 |
| Overall width | mm | 1240 | |
| Mast lowered height | mm | 2070 | |
| Mast extended height(with backrest) | mm | 4065 | |
| Overhead guard height | mm | 2220 | |
| Turning radius(outside) | mm | 2600 | |
| Speed | Travel(Unladen) | km/h | 19 |
| Lifting(Laden) | mm/sec | 430 | |
| Lowering(Laden) | mm/sec | 450 | |
| Max.Drawbar pull(Laden/unladen) | KN | 18(15.7) | |
| Max.Gradeability(Laden) | % | 20 | |
| Tyre | Front | mm | 28×9-15-12PR |
| Rear | mm | 6.50-10-10PR | |
Applications:
The 3-ton diesel forklift is a mainstay in manufacturing and logistics, widely used in mechanical assembly workshops, steel warehouses, building material yards, and for loading and unloading small and medium-sized containers at ports. In foundries, it can easily handle heavy workpieces such as motor housings and cast iron parts; in building material markets, it can load and unload cement precast slabs, steel pipes, and tiles, and handle outdoor slopes and uneven roads with ease. Thanks to the diesel engine's high torque and long operating range, it can work continuously in harsh environments such as high temperatures and dust. To meet export demands, we support the customization of attachments (side shifters, rotators), and provide anti-rust marine packaging and CE certification to ensure worry-free global delivery.
Advantages：
1. Reliable and durable core components: Key parts such as the transmission and drive axle are all self-made, combined with a high-strength mast and cast steering axle, ensuring a solid structure, low failure rate and long service life.
2. High efficiency and energy saving: Equipped with high-quality engines and load-sensing hydraulic systems, it provides strong power while effectively reducing fuel consumption.
3. Comfortable operation: The suspended overhead guard is flexibly connected to the exhaust system, significantly reducing the whole vehicle's vibration and noise; the suspended shock-absorbing seat, along with the car-like layout of the control handle, makes long-term operation less tiring.
4. Humanized safety: Standardized with lift buffers and explosion-proof safety valves, the goods descend smoothly; wide anti-slip pedals and an unobstructed front and rear view ensure driving safety.
5. Convenient maintenance: The engine hood can be opened at a large angle, and maintenance components such as filters are placed externally, making daily checks and maintenance easier.
6. Adaptability to all working conditions: Equipped with a high-performance cooling system, it supports continuous operation in harsh environments such as high temperatures and dust.
FAQ：
1. What is the maximum load capacity of a 3-ton diesel forklift?
Answer: The rated lifting capacity is 3000kg (i.e., 3 tons), measured under the standard load center distance (usually 500mm). During actual operation, do not overload and pay attention to the position of the center of gravity of the goods.
2. What are the main differences between diesel forklifts and electric forklifts?
One-sentence suggestion: For indoor use, light loads, and high environmental protection requirements → choose electric; for outdoor use, heavy loads, long operating hours, and harsh environments → choose diesel.
3. How to transport a 2-ton diesel forklift? What should be noted?
Answer: The transportation methods are usually whole vehicle road transportation or container sea export.
Export advantages: We can provide KD disassembled parts solutions to reduce tariffs in the destination country; packaging meets CE, EPA and other certification requirements.
4. Is a diesel forklift suitable for indoor use?
Not recommended. The exhaust gas emitted by diesel engines contains harmful substances such as CO and NOx. Long-term use in closed or poorly ventilated indoor environments may be harmful to health. If it must be used indoors, please ensure the installation of exhaust gas purification devices (such as DPF) and maintain strong ventilation, or switch to an electric forklift.
5. Compared with Heli, what are the advantages of our 2-ton diesel forklift?
Answer: Our product is on par with Heli in terms of performance, reliability, and durability, featuring the same excellent core configurations: self-made high-strength transmission and drive axle, load sensing hydraulic system, suspended shock-absorbing cab, lift buffer safety valve, etc. At the same time, we offer more flexible customization services (such as attachments, mast height, explosion-proof modification) and a faster delivery cycle (standard vehicles within 15 days), and support export certification and professional sea transportation packaging, with more competitive prices.
